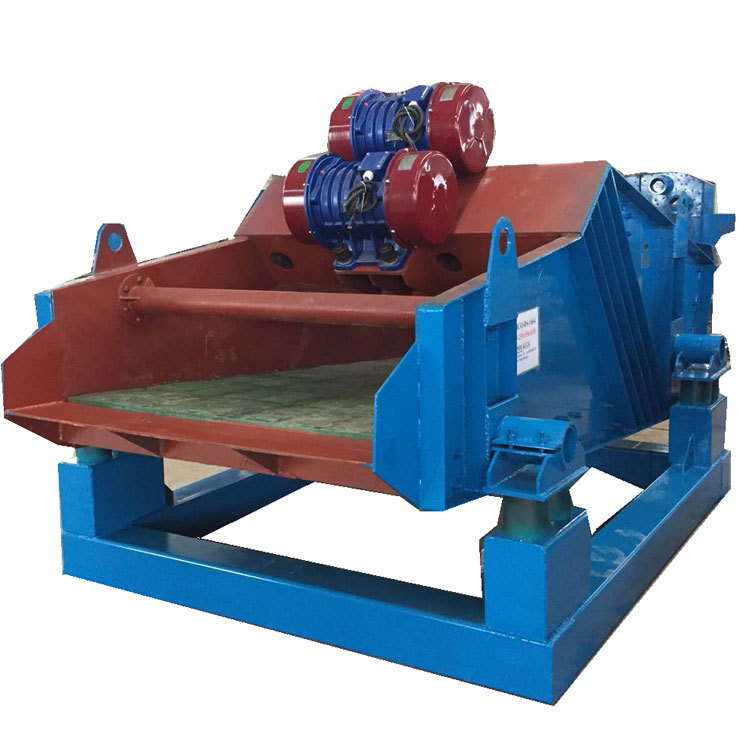

ZK型塊偏心自同步直線篩
Block-eccentric
and self-synchroniz ation type horizontal screens
系列篩機為直線運動，引進西德KHD公司技術制造?？捎糜谶x煤、選礦，對煤和礦石，非金屬物料進行脫水、脫介和脫泥，廣泛用于礦山、發電、制糖、制鹽，對中細粒度物料進行干濕式分級。
Linear movement,made according to the technology intrduced from KHD company.Suitable tor dewatering,medium drainaging and spraying in coal preparation and ore dressing,widely used for medium and fine material wet and dry classifying in mine,power,sugar making and salt making industries.
ZK型直線篩適用于原礦篩分、分級、脫泥、洗礦及脫水作業，尤其可作炭漿廠除屑、安全檢查、載金炭分離等。該機具有低能耗（安裝功率一般為自定中心篩的1/5）、結構簡單、沒有傳動部件、維修工作量少，工作可靠，振幅可調等特點。
| 型號規格Model | 篩面尺寸 | 工作面積 | 層數 | 篩孔尺寸 | 篩面傾角 | 振幅 | 頻率 | 給粒粒度 | 處理能力 | 電機功率 | 質量 |
| Size m | Area m2 | No.of Decks | Hole Size mm | Dip (°) | Amp -litude mm | FreQu -ency HZ | Feed Size mm | Capa -city t/h | Power kw | Weigh kg | |
| ZK1022 | 1×2.25 | 2.25 | 1 | 0.25-13 | ±5 | 3.5-5.0 | 16.00-16.33 | ≤150 | 5-29 | 2×3.0 | 1850 |
| 2ZK1022 | 1×2.25 | 2.25 | 2 | 3-50 0.25-13 | ±5 | 3.5-5.0 | 16.00-16.33 | ≤250 | 12-90 | 2×5.5 | 2595 |
| ZK1222 | 1.2×2.25 | 2.70 | 1 | 0.25-13 | ±5 | 3.5-5.0 | 16.00-16.33 | ≤150 | 5-41 | 2×4.0 | 2485 |
| 2ZK1222 | 1.2×2.25 | 2.70 | 2 | 3-50 0.25-13 | ±5 | 3.5-5.0 | 16.00-16.33 | ≤250 | 15-108 | 2×7.5 | 3415 |
| ZK1230 | 1.2×3.0 | 3.60 | 1 | 0.25-13 | ±5 | 3.5-5.0 | 16.00-16.33 | ≤150 | 7-54 | 2×5.5 | 2760 |
| 2ZK1230 | 1.2×3.0 | 3.60 | 2 | 3-50 0.25-13 | ±5 | 3.5-5.0 | 16.00-16.33 | ≤250 | 20-144 | 2×7.5 | 3905 |
| ZK1237 | 1.2×3.75 | 4.50 | 1 | 0.25-13 | ±5 | 3.5-5.0 | 16.00-16.33 | ≤150 | 9-68 | 2×5.5 | 2930 |
| 2ZK1237 | 1.2×3.75 | 4.50 | 2 | 3-50 0.25-13 | ±5 | 3.5-5.0 | 16.00-16.33 | ≤250 | 25-180 | 2×7.5 | 4320 |
| ZK1430 | 1.4×3.0 | 4.20 | 1 | 0.25-13 | ±5 | 3.5-5.0 | 16.00-16.33 | ≤150 | 8-63 | 2×5.5 | 3040 |
| 2ZK1430 | 1.4×3.0 | 4.20 | 2 | 3-50 0.25-13 | ±5 | 3.5-5.0 | 16.00-16.33 | ≤250 | 23-168 | 2×11 | 4225 |
| ZK1437 | 1.4×3.75 | 5.25 | 1 | 0.25-13 | ±5 | 3.5-5.0 | 16.00-16.33 | ≤150 | 11-79 | 2×5.5 | 3215 |
| 2ZK1437 | 1.4×3.75 | 5.25 | 2 | 3-50 0.25-13 | ±5 | 3.5-5.0 | 16.00-16.33 | ≤250 | 29-210 | 2×11 | 5245 |
| ZK1445 | 1.4×4.5 | 6.30 | 1 | 0.25-13 | ±5 | 3.5-5.0 | 16.00-16.33 | ≤150 | 13-95 | 2×7.5 | 3850 |
| 2ZK1445 | 1.4×4.5 | 6.30 | 2 | 3-50 0.25-13 | ±5 | 3.5-5.0 | 16.00-16.33 | ≤250 | 35-352 | 2×15 | 5770 |
| ZK1637 | 1.6×3.75 | 6.00 | 1 | 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤150 | 12-90 | 2×7.5 | 3560 |
| 2ZK1637 | 1.6×3.75 | 6.00 | 2 | 3-50 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤250 | 33-240 | 2×15 | 5835 |
| ZK1645 | 1.6×4.5 | 7.20 | 1 | 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤150 | 14-108 | 2×7.5 | 3850 |
| 2ZK1645 | 1.6×4.5 | 7.20 | 2 | 3-50 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤250 | 40-288 | 2×15 | 6505 |
| ZK1652 | 1.6×5.25 | 8.40 | 1 | 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤150 | 17-126 | 2×7.5 | 4090 |
| 2ZK1652 | 1.6×5.25 | 8.40 | 2 | 3-50 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤250 | 46-332 | 2×15 | 6950 |
| ZK1845 | 1.8×4.5 | 8.10 | 1 | 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤150 | 16-122 | 2×11 | 4995 |
| 2ZK1845 | 1.8×4.5 | 8.10 | 2 | 3-50 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤250 | 45-324 | 2×15 | 7095 |
| ZK1852 | 1.8×5.25 | 9.45 | 1 | 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤150 | 19-142 | 2×11 | 5340 |
| 2ZK1852 | 1.8×5.25 | 9.45 | 2 | 3-50 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤250 | 52-378 | 2×15 | 7740 |
| ZK1860 | 1.8×6.0 | 10.8 | 1 | 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤150 | 22-162 | 2×11 | 5650 |
| 2ZK1860 | 1.8×6.0 | 10.8 | 2 | 3-50 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤250 | 54-432 | 2×15 | 8210 |
| ZK2037 | 2×3.75 | 7.5 | 1 | 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤150 | 15-113 | 2×11 | 4855 |
| 2ZK2037 | 2×3.75 | 7.5 | 2 | 3-50 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤250 | 42-300 | 2×15 | 7210 |
| ZK2045 | 2×4.5 | 9 | 1 | 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤150 | 18-195 | 2×11 | 5205 |
| 2ZK2045 | 2×4.5 | 9 | 2 | 3-50 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤250 | 50-360 | 2×15 | 7930 |
| ZK2052 | 2×5.25 | 10.5 | 1 | 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤150 | 21-158 | 2×11 | 5915 |
| 2ZK2052 | 2×5.25 | 10.5 | 2 | 3-50 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤250 | 58-420 | 2×18.5 | 8780 |
| ZK2045 | 2×4.5 | 9 | 1 | 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤150 | 18-195 | 2×11 | 5205 |
| 2ZK2045 | 2×4.5 | 9 | 2 | 3-50 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤250 | 50-360 | 2×15 | 7930 |
| ZK2052 | 2×5.25 | 10.5 | 1 | 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤150 | 21-158 | 2×11 | 5915 |
| 2ZK2052 | 2×5.25 | 10.5 | 2 | 3-50 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤250 | 58-420 | 2×18.5 | 8780 |
| ZK2060 | 2×6.0 | 12 | 1 | 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤150 | 24-180 | 2×15 | 6285 |
| 2ZK2060 | 2×6.0 | 12 | 2 | 3-50 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤250 | 66-480 | 2×18.5 | 9365 |
| ZK2437 | 2.4×3.75 | 9 | 1 | 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤150 | 18-135 | 2×15 | 5635 |
| 2ZK2437 | 2.4×3.75 | 9 | 2 | 3-50 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤250 | 50-360 | 2×18.5 | 8350 |
| ZK2445 | 2.4×4.5 | 10.8 | 1 | 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤150 | 22-162 | 2×15 | 6352 |
| 2ZK2445 | 2.4×4.5 | 10.8 | 2 | 3-50 0.25-13 | ±5 | 3.5-5.0 | 16-16.33 | ≤250 | 60-432 | 2×22 | 9300 |
